 产品 >> 所有产品 > JK825/826Precision LCR Meter
产品编号:

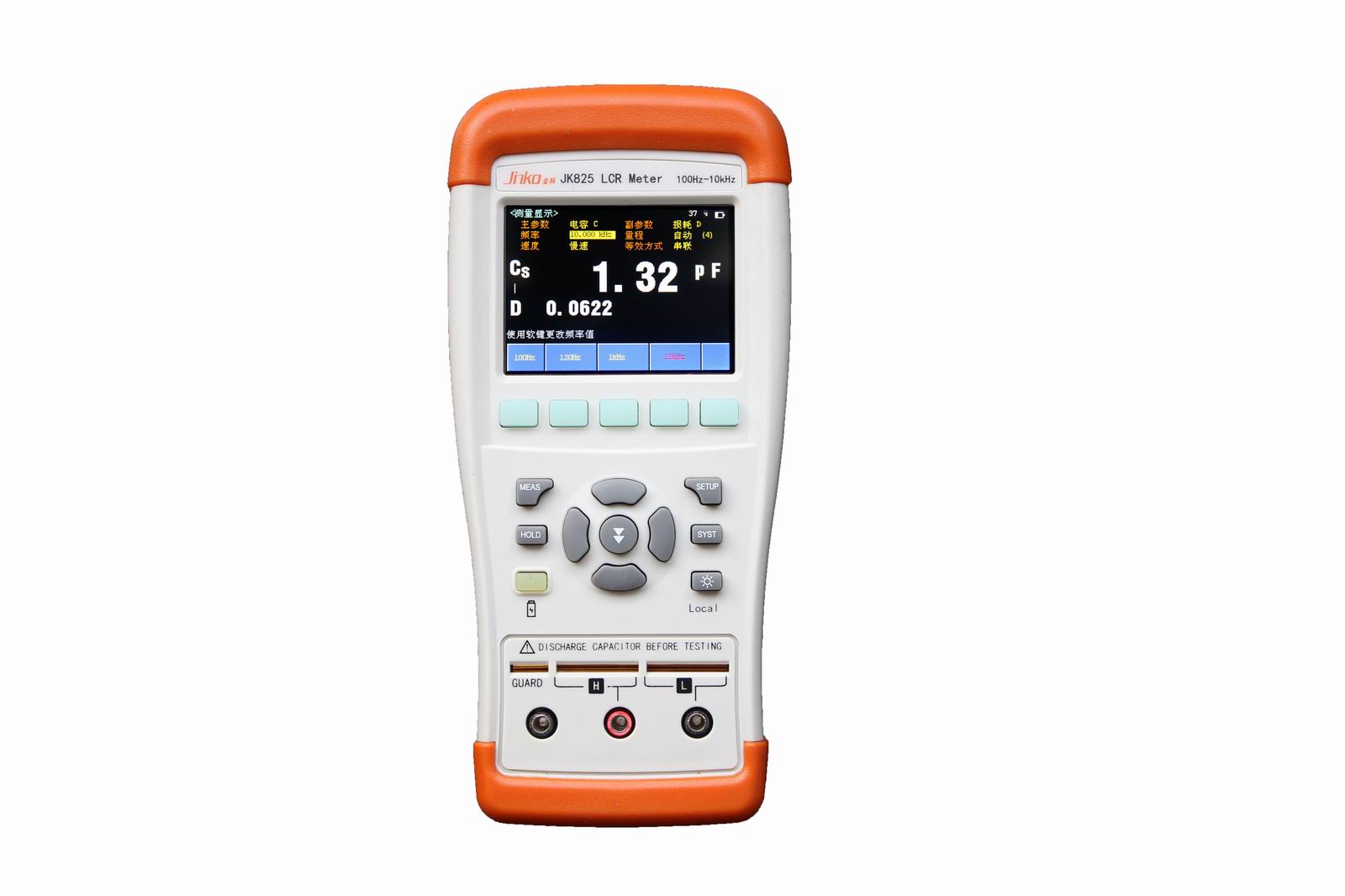

产品名称:JK826Precision LCR Meter
规格:91*40*194mm
产品备注:
产品类别:LCR ,Meter
Specification
  JK825 JK826
Parameters L,C,R,Z,D,Q,θ(deg),θ(rad)ESR
Accuracy 0.2%
Frequency 100Hz,120Hz,1kHz,10kHz 100Hz,120Hz,1kHz,10kHz.100kHz
Display Range L: 0.01μH-9999H D,Q: 0.0001 – 9999 C: 0.01pF - 9999μF θ(deg):-179.99°-179.99° R,Z:0.0001Ω - 99.99MΩ θ(rad):-3.1416 – 3.1416
Source Resistance 100Ω
Range Automatic or Manual
Display Max Principle Parameter: 49999 Sub Parameter:49999
Signal Level 0.6Vrms
Speed 4 times/second,1.5 times/second
Comparator 1 sets, compare main parameters
Adjustment Open/short scan frequency reset for each range
Interface Build-in Mini-USB interface(virtual interface) Charging interface
Feature
TFT-LCD Display
Correction: OPEN and SHORT
View: ΔABS, Δ% or Sorting Result on 3rd Line
Comparator Function: 10 files,6 bins: P1~P9,NG,AUX, HI, IN, LO
Interface: RS232C and Handler
Optional Interface: USB
Test signal monitor: Vm and Im
Avarage rate: 1~99times
Measurement Terminal: 5 terminals
Key lock function
