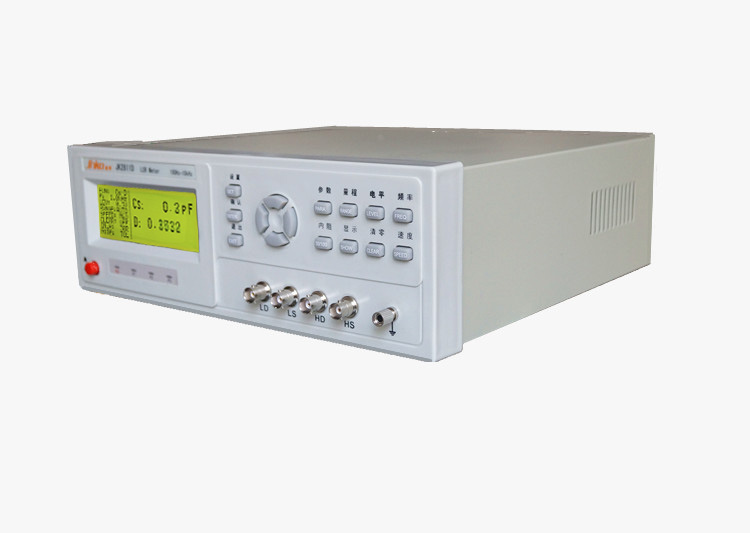

JK2811D/JK2817B LCR digital bridge is one type of the company's newly developed low frequency component measurement and upgrading of products, including application of new technology of multiple element measurement. LCD display which is easy to operate not only has beautiful appearance but also can meet the production quality assurance, the needs of the incoming goods inspection and automatic production. RS232C interface, can provide users with remote control and the statistics and analysis of test data.
Features
■192 * 64 dot matrix LCD backlit display
■The reasonable combination of easy operation and powerful function
■Rapid measurement speed (80 ms/time)
■The stability of the reading was satisfactory.
■30Ω,100Ω, two kinds of output impedance
■ 5 Bins comparator and HANDLER interface
Specifications
JK2811D
JK2817B
Measurement function
Measurement parameter
L-Q, C-D, R-Q, |Z|-Q
Basic accuracy
0.1%
Equivalent circuit
Series ,parallel
Mathematical function
Absolute value deviation,△%
Range mode
Auto, Hold
Trigger mode
Internal, Manual, External
Measurement speed
Fast: 18, Med:8,Slow: 2.5 (time/second)
Calibration function
Open/Short full correction
Measurement terminal
5-terminal
Display mode
Direct，Δ%，
Display
192*64 LCD display
Measurement signal
Signal frequency
100Hz,120Hz,1kHz,10kHz
50/60/80//100/120/200/400/500/800/
1k/2k/4k/5k/80k/ 10k/20k/25k/40k/
50k/100k A total of 20 typical frequency
