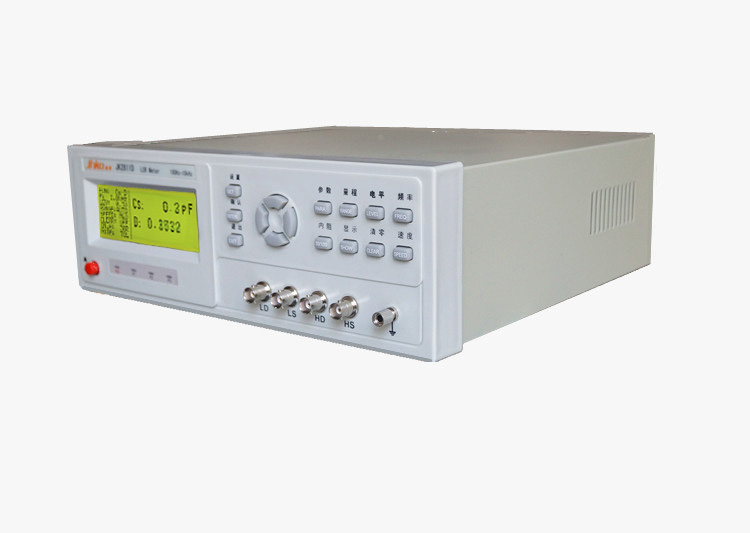

JK2811D LCR digital bridge details:
JK2811D/JK2817B type LCR digital bridge is the latest development of low frequency component measurement, of which the latest technology of measuring with many components, LCD display, easy operation and beautiful appearance. It can meet the requirements of production line quality assurance, incoming inspection and automatic production. The RS232C interface provides users with remote control and test data statistics and analysis.
*Performance characteristics
*- 192*64 dot matrix LCD display with backlight
*A reasonable combination of simple operation and strong function.
*Fast measuring speed - (80ms/)
*- good reading stability
*30, 100 - two ohm output impedance
*Five - sorting and HANDLER interface
*Technical parameters of JK2811D LCR digital bridge
|
|
JK2811D
|
JK2817B
|
|
Measurement function
|
|
Test parameter
|
L-Q, C-D, R-Q, |Z|-Q
|
|
Basic accuracy
|
0.1%
|
|
equivalent circuit
|
Series connection
|
|
Mathematical function
|
Absolute value deviation, percent deviation
|
|
Range mode
|
Auto hold
|
|
Trigger mode div>
|
Internal, manual, external
|
|
Test speed
|
Speed: 12, medium speed: 5.1, slow: 2.5 (times / sec)
|
|
Calibration function
|
Open circuit / short circuit reset
|
|
Test side configuration
|
five
|
|
display mode
|
direct reading ，Δ%，
|
|
Monitor
|
192*64 LCD display
|
|
test signal
|
|
Test signal frequency
|
100Hz,120Hz,1kHz,10kHz
|
50/60/80//100/120/200/400/500/800/1k/2k/4k/5k/80k/
10k/20k/25k/40k/50k/100k A total of 20 typical frequencies are presented
|
|
Output impedance
|
30 Ω , 100 Ω
|
|
Test signal level
|
0.1Vrms, 0.3Vrms, 1Vrms
|
|
Measurement display range
|
|
|Z|, R
|
0.0001 Ω — 99.999 M&Omega
|
|
C
|
0.01 pF — 99999μ F
|
|
L
|
0.01 µH — 99999 H
|
|
D
|
0.0001 — 9.9999
|
|
Q
|
0.0001 — 9999.9
|
|
Δ%
|
-999.99% — 999.99%
|
Comparator and interface
|
|
Comparator
|
NG, P1, P2, P3, Four files sorting and pressing sound
|
|
interface
|
RS232C, Handler option
|
General technical indicators
|
Operating temperature and humidity
|
0°C－40°C, £90%RH
|
|
Power requirements
|
voltage
|
99V－121V, 198V－242V
|
|
frequency
|
47.5Hz－63Hz
|
|
power waste
|
≤20 VA
|
|
size (W×H×D)
|
270mm×130mm×290mm
|
|
weight
|
3.5kg
|
|
